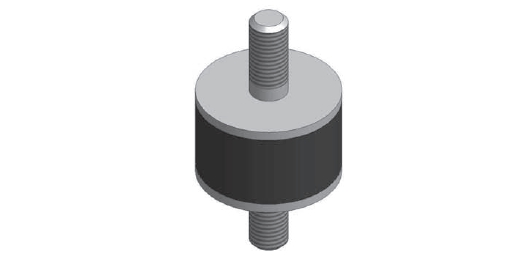

Puffer Typ A

Articolo

Article

Artikel

Dimension

Compression

Shear

D x H

(mm)

G x L

(mm)

Load

(daN)

C = daN/cm

Load

(daN)

C = daN/cm

h

m

w

h

m

w

A 8x8

8x8

M3x6

3

57

39

14

1

11

7,5

4,2

A 10x8

10x8

M4x10

5

64

44

22

1,5

14,8

10,2

5,7

A 16x15

16x15

M4x10

10

106

66

30

3

19,2

13,3

7,4

A 18x8,5

18x8,5

M6x16

12

255

166

98

5

60

41

23

A 20x15

20x15

M6x18

15

187

130

83

6

36

23

13

A 20x20

20x20

M6x18

15

121

83

50

6

24

16

9,3

A25x20

25x20

M6x18

25

195

138

86

10

40

27

14

A30x20

30x20

M8x20

35

294

203

130

15

57

40

22

A30x25

30x25

M8x20

35

202

136

89

15

45

30

16

A30x30

30x30

M8x20

35

155

107

65

15

35

24

13

A40x30

40x30

M8x23

60

303

192

130

25

63

43

24

A40x40

40x40

M8x23

60

195

136

83

25

45

31

17

A50x20

50x20

M10x25

100

1587

1000

540

40

160

110

61

A50x30

50x30

M10x25

100

571

395

219

40

98

68

37

A50x45

50x45

M10x25

100

311

142

119

40

62

40

24

A75x40

75x40

M12x37

220

1083

750

415

90

169

117

65

A75x55

75x55

M12x37

220

634

438

243

90

117

81

45

A100x40

100x40

M16x44

400

2877

1951

982

150

319

221

122

A400x60

100x60

M16x44

400

1159

803

438

150

196

136

75




Zoom Zur Vergrößerung auf das Bild klicken

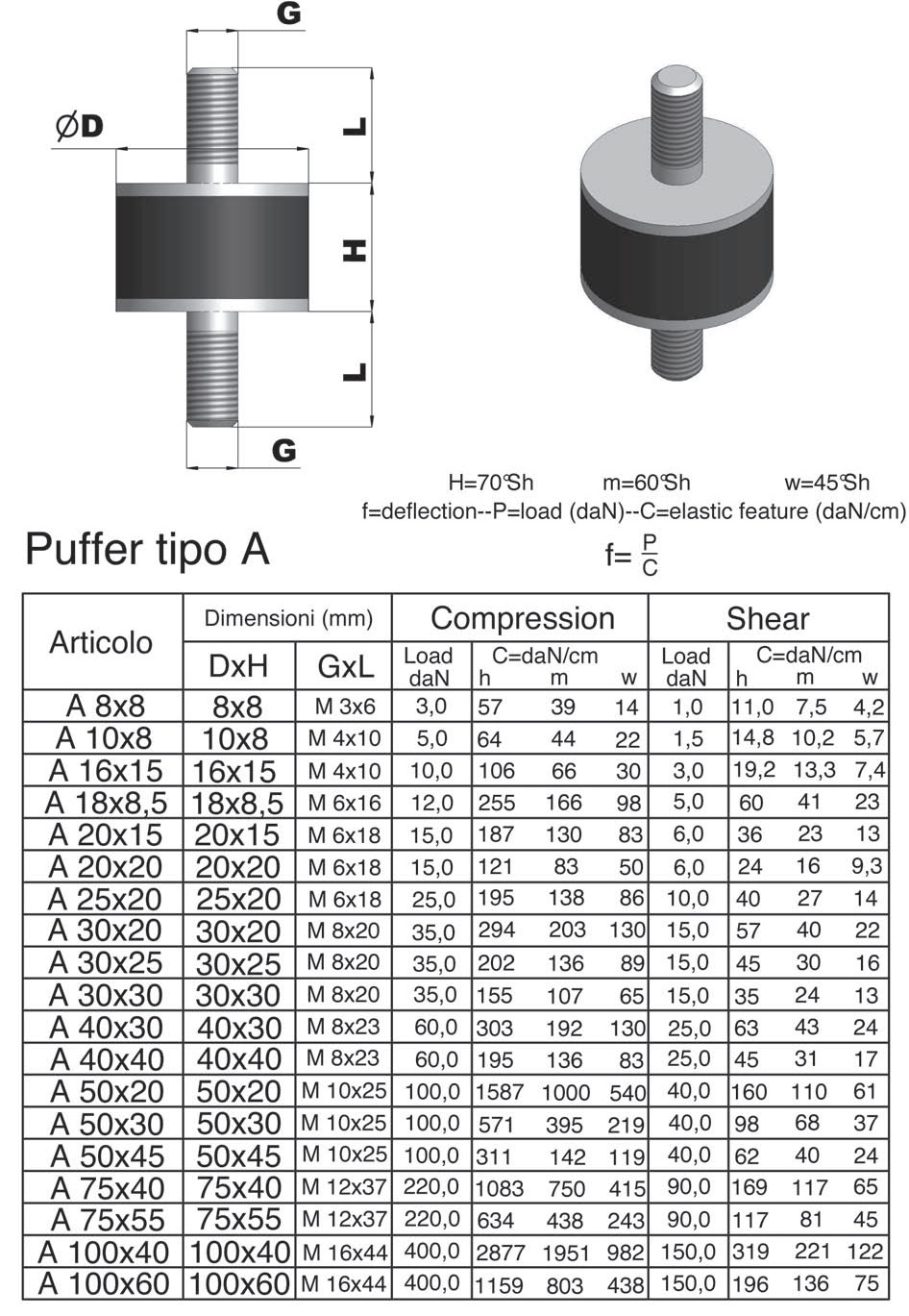

Zubehör Puffer A Zubehör Puffer A Schema
Die vollstndigen und aktuellsten technischen Spezifikationen finden Sie in dem technischen Datenblatt welches hier heruntergeladen werden kann:
PDF-Datenblatt herunterladen

MOUNTING OF THE LOAD CELL

General precautions to be followed in the installation and assembly of load cells:

  • Follow the direction of application of force on the load cell
  • Do not exceed the limits of the temperature as indicated in the data sheet
  • Do not remove labels from the load cell
  • Adequately protect the cables with sleeves or channels
  • Carry out on each load cell a ground connection with suitable cable, shunt on mounting accessories
  • Do not carry out any welding on the mechanical structure after mounting the load cell
  • Avoid or reduce to a minimum level any mechanical constraints between the rigid structure and the weighing structure to avoid error in weighing and return to zero
  • In case of vibration or dynamic loads product the load cells with puffers / shock absorbers
  • Protect load cell from any dust accumulation with any appropriate means
