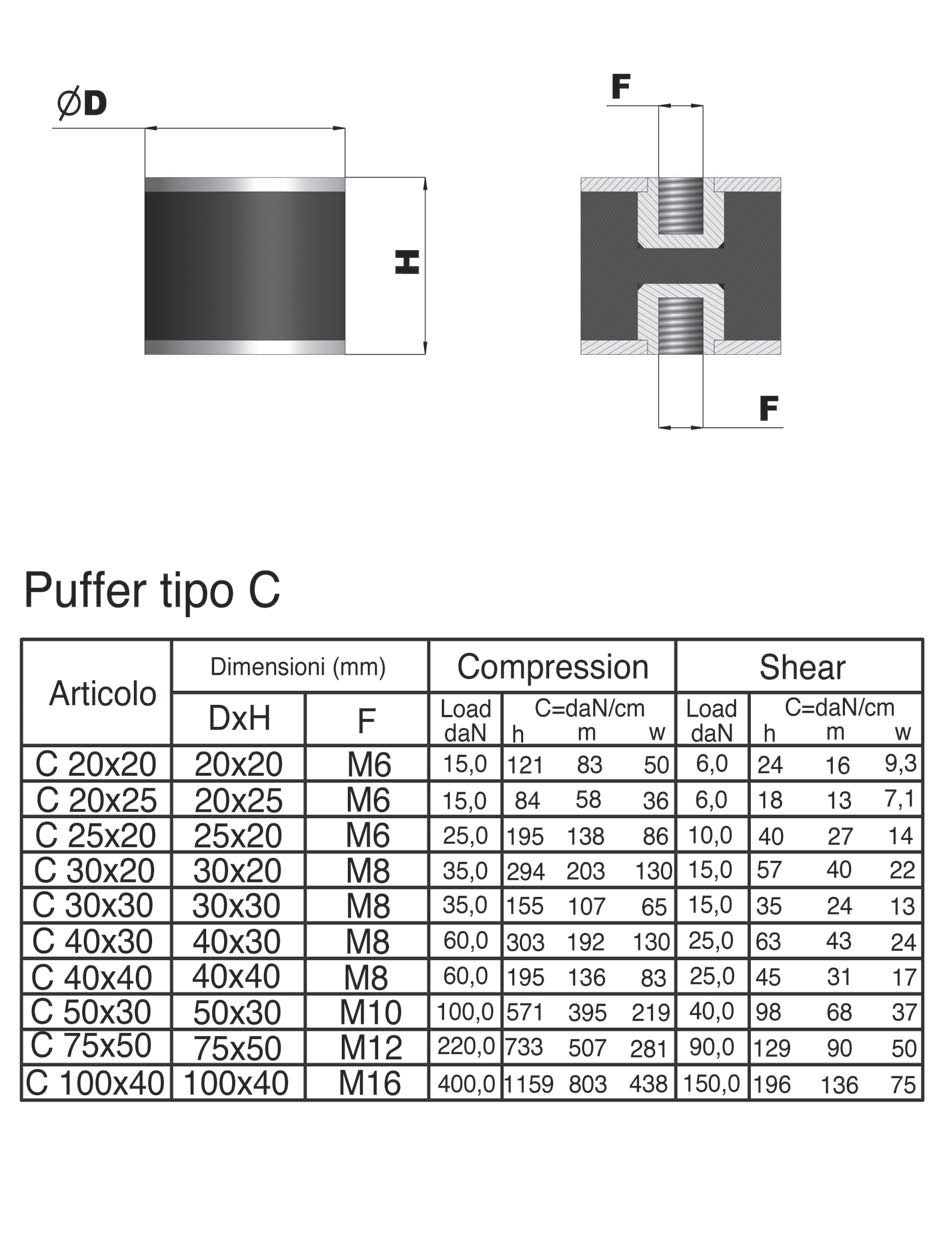

Puffer Typ C

Articolo

Article

Artikel

Dimension

Compression

Shear

D x H

(mm)

F

(mm)

Load

(daN)

C = daN/cm

Load

(daN)

C = daN/cm

h

m

w

h

m

w

C 20x20

20x20

M6

15

121

83

50

6

24

16

9,3

C 20x25

20x25

M6

15

84

58

36

6

18

13

7,1

C 25x20

25x20

M6

25

195

138

86

10

40

27

14

C 30x20

30x20

M8

35

294

203

130

15

57

40

22

C 30x30

30x30

M8

35

155

107

65

15

35

24

13

C 40x30

40x30

M8

60

303

192

130

25

63

43

24

C 40x40

40x40

M8

60

195

136

83

25

45

31

17

C 50x30

50x30

M10

100

571

395

219

40

98

68

37

C 75x50

75x50

M12

220

733

507

281

90

129

90

50

C 100x40

100x40

M16

400

1159

803

438

150

196

136

75


Zoom Zur Vergrößerung auf das Bild klicken

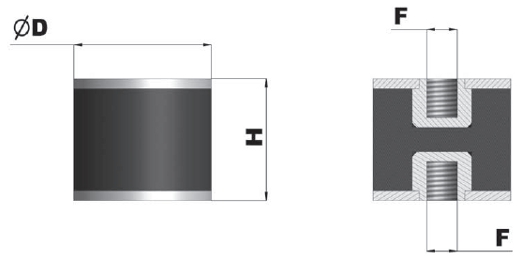

Zubehör Puffer C Zubehör Puffer C Schema
Die vollstndigen und aktuellsten technischen Spezifikationen finden Sie in dem technischen Datenblatt welches hier heruntergeladen werden kann:
PDF-Datenblatt herunterladen

MOUNTING OF THE LOAD CELL

General precautions to be followed in the installation and assembly of load cells:

  • Follow the direction of application of force on the load cell
  • Do not exceed the limits of the temperature as indicated in the data sheet
  • Do not remove labels from the load cell
  • Adequately protect the cables with sleeves or channels
  • Carry out on each load cell a ground connection with suitable cable, shunt on mounting accessories
  • Do not carry out any welding on the mechanical structure after mounting the load cell
  • Avoid or reduce to a minimum level any mechanical constraints between the rigid structure and the weighing structure to avoid error in weighing and return to zero
  • In case of vibration or dynamic loads product the load cells with puffers / shock absorbers
  • Protect load cell from any dust accumulation with any appropriate means
