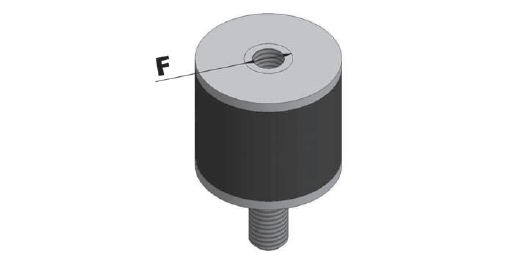

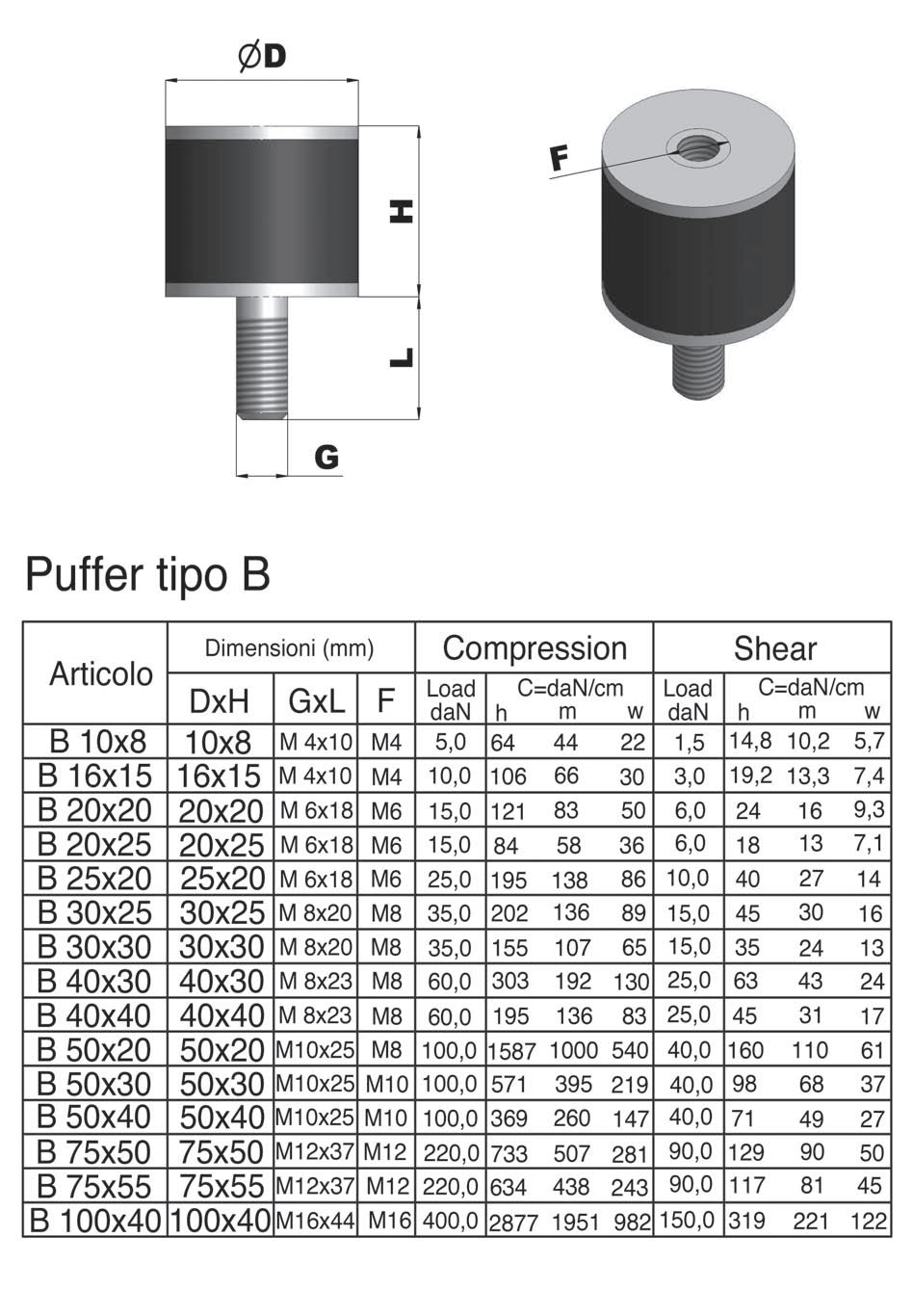

Puffer Typ B

Articolo

Article

Artikel

Dimension

Compression

Shear

D x H

(mm)

G x L

(mm)

Load

(daN)

C = daN/cm

Load

(daN)

C = daN/cm

h

m

w

h

m

w

B 10x8

10x8

M4x10

5

64

44

22

1,5

14,8

10,2

5,7

B 16x15

16x15

M4x10

10

106

66

30

3

19,2

13,3

7,4

B 20x20

20x20

M6x18

15

121

83

50

6

24

16

9,3

B 20x25

20x25

M6x18

15

84

58

36

6

18

13

7,1

B 25x20

25x20

M6x18

25

195

138

86

10

40

27

14

B 30x25

30x25

M8x20

35

202

136

89

15

45

30

16

B 30x30

30x30

M8x20

35

155

107

65

15

35

24

13

B 40x30

40x30

M8x23

60

303

192

130

25

63

43

24

B 40x40

40x40

M8x23

60

195

136

83

25

45

31

17

B 50x20

50x20

M10x25

100

1587

1000

540

40

160

110

61

B 50x30

50x30

M10x25

100

571

395

219

40

98

68

37

B 50x40

50x40

M10x25

100

369

260

147

40

71

49

27

B 75x50

75x50

M12x37

220

733

507

281

90

129

90

50

B 75x55

75x55

M12x37

220

637

438

243

90

117

81

45

B100x40

100x40

M16x44

400

2877

1951

982

150

319

221

122

F = G


Zoom Zur Vergrößerung auf das Bild klicken

Zubehör Puffer B Zubehör Puffer B Schema
Die vollstndigen und aktuellsten technischen Spezifikationen finden Sie in dem technischen Datenblatt welches hier heruntergeladen werden kann:
PDF-Datenblatt herunterladen

MOUNTING OF THE LOAD CELL

General precautions to be followed in the installation and assembly of load cells:

  • Follow the direction of application of force on the load cell
  • Do not exceed the limits of the temperature as indicated in the data sheet
  • Do not remove labels from the load cell
  • Adequately protect the cables with sleeves or channels
  • Carry out on each load cell a ground connection with suitable cable, shunt on mounting accessories
  • Do not carry out any welding on the mechanical structure after mounting the load cell
  • Avoid or reduce to a minimum level any mechanical constraints between the rigid structure and the weighing structure to avoid error in weighing and return to zero
  • In case of vibration or dynamic loads product the load cells with puffers / shock absorbers
  • Protect load cell from any dust accumulation with any appropriate means
